Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Degree of protection (IP), front sideIP2X
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq7kA
Rated operating voltage690 - 690V
Number of switches-
Number of poles4
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu63A
InterlockableYes
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationYes
Suitable for front mounting 4-holeYes
Rated operation power at AC-23, 400 V35kW
Version as reversing switchNo
Suitable for floor mountingNo
Type of control elementToggle
Max. rated operation voltage Ue AC690V
Switching power at 400 V35kW
Suitable for front mounting centreYes
Suitable for distribution board installationYes
Version as main switchYes
Voltage release optionalNo
Suitable for intermediate mountingNo
Colour control elementRed
Version as safety switchYes
Rated short-time withstand current lcw2.5kA
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalNo
Rated permanent current at AC-21, 400 V63A
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Version as maintenance-/service switchYes
Rated permanent current at AC-23, 400 V-A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

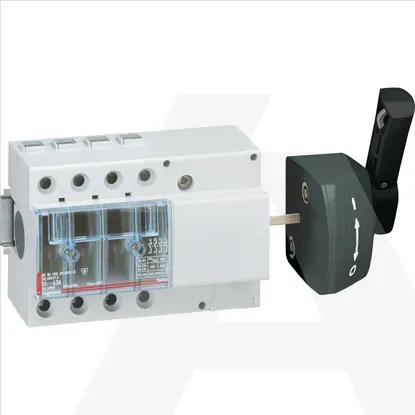

022318 | RASTAVNA SKLOPKA, 4P 63A
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Degree of protection (IP), front side
IP2X
Rated operation power at AC-3, 400 V
-kW
Number of auxiliary contacts as normally open contact
0
Conditioned rated short-circuit current Iq
7kA
Rated operating voltage
690 .. 690V
Number of switches
-
Number of poles
4
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
63A
Interlockable
Number of auxiliary contacts as change-over contact
0
Version as emergency stop installation
Suitable for front mounting 4-hole
Rated operation power at AC-23, 400 V
35kW
Version as reversing switch
Suitable for floor mounting
Type of control element
Toggle
Max. rated operation voltage Ue AC
690V
Switching power at 400 V
35kW
Suitable for front mounting centre
Suitable for distribution board installation
Version as main switch
Voltage release optional
Suitable for intermediate mounting
Colour control element
Red
Version as safety switch
Rated short-time withstand current lcw
2.5kA
Device construction
Built-in device fixed built-in technique
Motor drive optional
Rated permanent current at AC-21, 400 V
63A
Motor drive integrated
Type of electrical connection of main circuit
Screw connection
Version as maintenance-/service switch
Rated permanent current at AC-23, 400 V
-A
