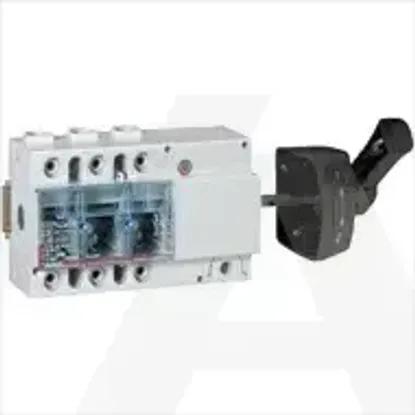

022554 | Rastavna Sklopka, 3P 160A
Code: 1770399
ManufacturerLegrand
Catalog number022554
TypeLegrand 022554
CategorySwitch disconnector
EAN code3245060225544
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
InterlockableYes
Version as maintenance-/service switchYes
Number of switches-
Degree of protection (IP), front sideIP2X
Number of auxiliary contacts as change-over contact0
Type of control elementToggle
Rated operating voltage690 - 690V
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V88kW
Version as main switchYes
Conditioned rated short-circuit current Iq12kA
Motor drive integratedNo
Version as safety switchNo
Colour control elementBlack
Suitable for front mounting 4-holeNo
Suitable for floor mountingNo
Rated short-time withstand current lcw3.5kA
Suitable for front mounting centreNo
Number of auxiliary contacts as normally open contact0
Rated permanent current at AC-21, 400 V160A
Switching power at 400 V88kW
Voltage release optionalNo
Motor drive optionalNo
Rated permanent current at AC-23, 400 V-A
Version as reversing switchNo
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Device constructionBuilt-in device fixed built-in technique
Rated permanent current Iu160A
Number of poles3
Max. rated operation voltage Ue AC690V
