Details
- •Terminal blocks
- •(Knife) disconnect terminal block
- •5 KOM
- •LEGRAND
Technical specifications
Depth296mm
Internally connected stagesNo
Mounting methodDIN rail (top hat rail) 35 mm
ColourGrey
Type of electrical connection 1Screw connection
Type of slittingSwivelling
Width42mm
Height89.5mm
Number of levels1
Operating temperature-5 - 40°C
Rated voltage1000V
Number of clamp positions per level1
With integrated test socketYes
Type of electrical connection 2Screw connection
Closing plate requiredNo
Inflammability class of insulation material according to with UL94V2
Connectable conductor cross section fine-strand without cable end sleeve35 - 120mm²
Connectable conductor cross section multi-wired35 - 120mm²
Rated current In250A
Connectable conductor cross section solid-core35 - 120mm²
Connectable conductor cross section fine-strand with cable end sleeve- - -mm²
Material insulation bodyThermoplastic
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

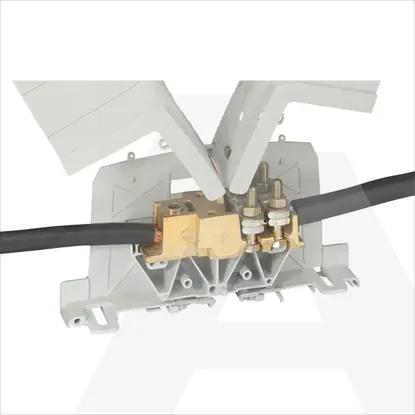

039010 | REDNA STEZALJKA POJACANA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Terminal blocks
- (Knife) disconnect terminal block
- 5 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Depth
296mm
Internally connected stages
Mounting method
DIN rail (top hat rail) 35 mm
Colour
Grey
Type of electrical connection 1
Screw connection
Type of slitting
Swivelling
Width
42mm
Height
89.5mm
Number of levels
1
Operating temperature
-5 .. 40°C
Rated voltage
1000V
Number of clamp positions per level
1
With integrated test socket
Type of electrical connection 2
Screw connection
Closing plate required
Inflammability class of insulation material according to with UL94
V2
Connectable conductor cross section fine-strand without cable end sleeve
35 .. 120mm²
Connectable conductor cross section multi-wired
35 .. 120mm²
Rated current In
250A
Connectable conductor cross section solid-core
35 .. 120mm²
Connectable conductor cross section fine-strand with cable end sleeve
- .. -mm²
Material insulation body
Thermoplastic
