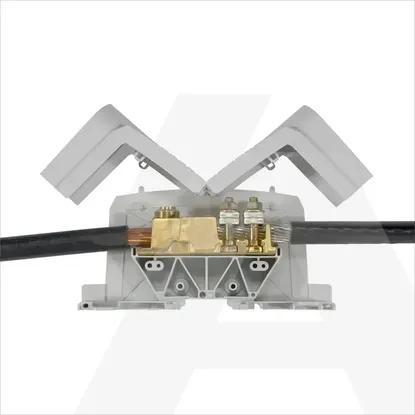

Details
- •Terminal blocks
- •(Knife) disconnect terminal block
- •5 KOM
- •LEGRAND
Technical specifications
Closing plate requiredNo
ColourGrey
Type of slittingSwivelling
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Width55mm
Height113.5mm
Operating temperature-5 - 40°C
Depth337mm
Inflammability class of insulation material according to with UL94V2
With integrated test socketYes
Connectable conductor cross section fine-strand without cable end sleeve70 - 300mm²
Internally connected stagesNo
Connectable conductor cross section fine-strand with cable end sleeve- - -mm²
Number of clamp positions per level1
Material insulation bodyThermoplastic
Number of levels1
Connectable conductor cross section multi-wired70 - 300mm²
Mounting methodDIN rail (top hat rail) 35 mm
Rated voltage1000V
Connectable conductor cross section solid-core70 - 300mm²
Rated current In400A
