Details
- •Terminal blocks

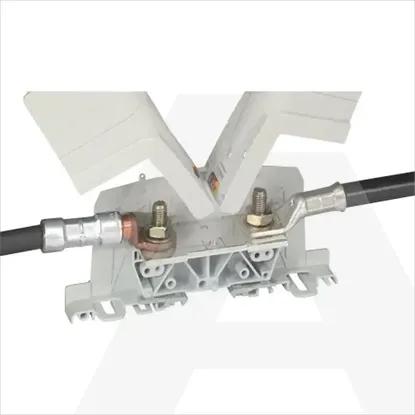

- •(Knife) disconnect terminal block
- •5 KOM
- •LEGRAND
Technical specifications
ColourGrey
Width36mm
Height88mm
Inflammability class of insulation material according to with UL94V2
Operating temperature-5 - 40°C
Depth227mm
Closing plate requiredNo
Type of electrical connection 2Bolt connection
Number of clamp positions per level1
Number of levels1
Internally connected stagesNo
Type of electrical connection 1Bolt connection
Type of slittingSwivelling
With integrated test socketYes
Connectable conductor cross section fine-strand with cable end sleeve- - -mm²
Connectable conductor cross section fine-strand without cable end sleeve95 - 95mm²
Material insulation bodyThermoplastic
Connectable conductor cross section multi-wired- - -mm²
Mounting methodDIN rail (top hat rail) 35 mm
Rated voltage1000V
Connectable conductor cross section solid-core- - -mm²
Rated current In310A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
039013 | Stezaljka za Kab. Stopicu
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Terminal blocks
- (Knife) disconnect terminal block
- 5 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Colour
Grey
Width
36mm
Height
88mm
Inflammability class of insulation material according to with UL94
V2
Operating temperature
-5 .. 40°C
Depth
227mm
Closing plate required
Type of electrical connection 2
Bolt connection
Number of clamp positions per level
1
Number of levels
1
Internally connected stages
Type of electrical connection 1
Bolt connection
Type of slitting
Swivelling
With integrated test socket
Connectable conductor cross section fine-strand with cable end sleeve
- .. -mm²
Connectable conductor cross section fine-strand without cable end sleeve
95 .. 95mm²
Material insulation body
Thermoplastic
Connectable conductor cross section multi-wired
- .. -mm²
Mounting method
DIN rail (top hat rail) 35 mm
Rated voltage
1000V
Connectable conductor cross section solid-core
- .. -mm²
Rated current In
310A
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
