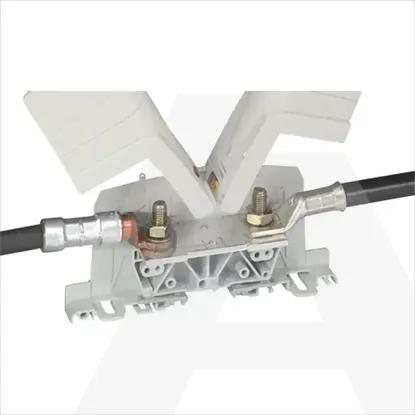

Main Product Image

039014 | STEZALJKA ZA KAB. STOPICU

Code: 1772829

ManufacturerLegrand
Catalog number039014
EAN code3245060390143

















Details

  • Terminal blocks
  • (Knife) disconnect terminal block
  • 5 KOM
  • LEGRAND

Technical specifications

Connectable conductor cross section multi-wired- - -mm²
Connectable conductor cross section solid-core- - -mm²
Connectable conductor cross section fine-strand with cable end sleeve- - -mm²
Rated current In415A
Rated voltage1000V
Material insulation bodyThermoplastic
Mounting methodDIN rail (top hat rail) 35 mm
Connectable conductor cross section fine-strand without cable end sleeve150 - 150mm²
Type of electrical connection 1Bolt connection
Number of levels1
Number of clamp positions per level1
Type of electrical connection 2Bolt connection
Inflammability class of insulation material according to with UL94V2
Internally connected stagesNo
Width42mm
Operating temperature-5 - 40°C
ColourGrey
Closing plate requiredNo
Type of slittingSwivelling
Depth296mm
Height89.5mm
With integrated test socketYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

039014 | STEZALJKA ZA KAB. STOPICU

Main Product Image

Details

  • Terminal blocks
  • (Knife) disconnect terminal block
  • 5 KOM
  • LEGRAND

Technical specifications

Connectable conductor cross section multi-wired

- .. -mm²

Connectable conductor cross section solid-core

- .. -mm²

Connectable conductor cross section fine-strand with cable end sleeve

- .. -mm²

Rated current In

415A

Rated voltage

1000V

Material insulation body

Thermoplastic

Mounting method

DIN rail (top hat rail) 35 mm

Connectable conductor cross section fine-strand without cable end sleeve

150 .. 150mm²

Type of electrical connection 1

Bolt connection

Number of levels

1

Number of clamp positions per level

1

Type of electrical connection 2

Bolt connection

Inflammability class of insulation material according to with UL94

V2

Internally connected stages

Width

42mm

Operating temperature

-5 .. 40°C

Colour

Grey

Closing plate required

Type of slitting

Swivelling

Depth

296mm

Height

89.5mm

With integrated test socket
