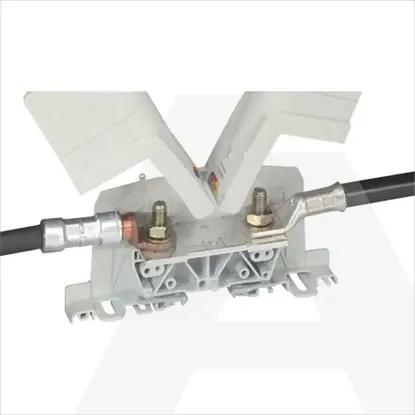

Details
- •Terminal blocks
- •(Knife) disconnect terminal block
- •5 KOM
- •LEGRAND
Technical specifications
Width55mm
Depth337mm
Mounting methodDIN rail (top hat rail) 35 mm
Rated voltage1000V
Operating temperature-5 - 40°C
ColourGrey
Height113.5mm
Connectable conductor cross section fine-strand with cable end sleeve- - -mm²
Number of clamp positions per level1
Type of electrical connection 2Bolt connection
Type of slittingSwivelling
Material insulation bodyThermoplastic
Inflammability class of insulation material according to with UL94V2
Rated current In670A
Type of electrical connection 1Bolt connection
Connectable conductor cross section solid-core- - -mm²
With integrated test socketYes
Connectable conductor cross section fine-strand without cable end sleeve300 - 300mm²
Internally connected stagesNo
Number of levels1
Closing plate requiredNo
Connectable conductor cross section multi-wired- - -mm²
