Details
- •Terminal blocks
- •(Knife) disconnect terminal block
- •5 KOM
- •LEGRAND
Technical specifications
ColourGrey
Height89.5mm
Inflammability class of insulation material according to with UL94V2
Width42mm
Depth296mm
Operating temperature-5 - 40°C
Closing plate requiredNo
Type of electrical connection 2Screw connection
Number of clamp positions per level1
Internally connected stagesNo
Number of levels1
With integrated test socketYes
Material insulation bodyThermoplastic
Type of electrical connection 1Bolt connection
Connectable conductor cross section fine-strand with cable end sleeve- - -mm²
Connectable conductor cross section fine-strand without cable end sleeve35 - 150mm²
Connectable conductor cross section multi-wired35 - 95mm²
Type of slittingSwivelling
Mounting methodDIN rail (top hat rail) 35 mm
Rated voltage1000V
Connectable conductor cross section solid-core35 - 95mm²
Rated current In315A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

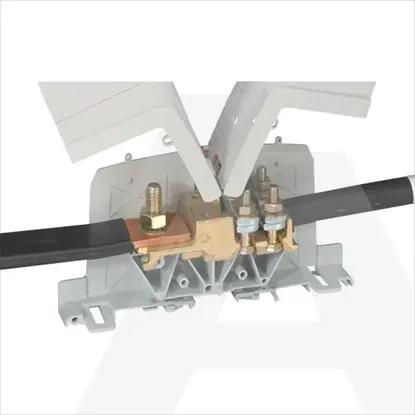

039017 | Stezaljka za Kab. Stopicu
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Terminal blocks
- (Knife) disconnect terminal block
- 5 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Colour
Grey
Height
89.5mm
Inflammability class of insulation material according to with UL94
V2
Width
42mm
Depth
296mm
Operating temperature
-5 .. 40°C
Closing plate required
Type of electrical connection 2
Screw connection
Number of clamp positions per level
1
Internally connected stages
Number of levels
1
With integrated test socket
Material insulation body
Thermoplastic
Type of electrical connection 1
Bolt connection
Connectable conductor cross section fine-strand with cable end sleeve
- .. -mm²
Connectable conductor cross section fine-strand without cable end sleeve
35 .. 150mm²
Connectable conductor cross section multi-wired
35 .. 95mm²
Type of slitting
Swivelling
Mounting method
DIN rail (top hat rail) 35 mm
Rated voltage
1000V
Connectable conductor cross section solid-core
35 .. 95mm²
Rated current In
315A
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
