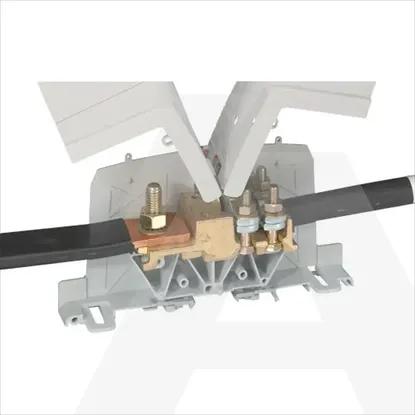

Details
- •Terminal blocks
- •(Knife) disconnect terminal block
- •5 KOM
- •LEGRAND
Technical specifications
Closing plate requiredNo
Height113.5mm
ColourGrey
Inflammability class of insulation material according to with UL94V2
Operating temperature-5 - 40°C
Width55mm
Depth337mm
Type of electrical connection 2Screw connection
Type of slittingSwivelling
Type of electrical connection 1Bolt connection
Internally connected stagesNo
Number of levels1
Number of clamp positions per level1
Connectable conductor cross section multi-wired70 - 150mm²
With integrated test socketYes
Connectable conductor cross section fine-strand without cable end sleeve70 - 300mm²
Material insulation bodyThermoplastic
Connectable conductor cross section fine-strand with cable end sleeve- - -mm²
Mounting methodDIN rail (top hat rail) 35 mm
Rated voltage1000V
Connectable conductor cross section solid-core70 - 150mm²
Rated current In420A
