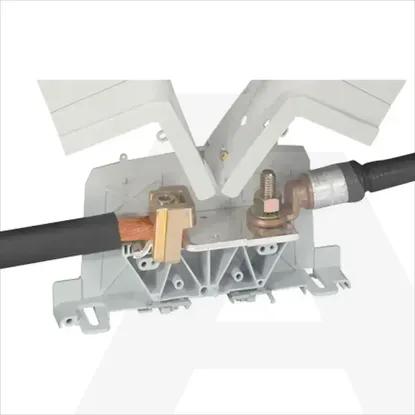

Details
- •Terminal blocks
- •(Knife) disconnect terminal block
- •5 KOM
- •LEGRAND
Technical specifications
Depth296mm
ColourGrey
Width42mm
Height89.5mm
Internally connected stagesNo
With integrated test socketYes
Type of electrical connection 1Screw connection
Material insulation bodyThermoplastic
Type of electrical connection 2Bolt connection
Type of slittingSwivelling
Connectable conductor cross section multi-wired35 - 120mm²
Connectable conductor cross section fine-strand without cable end sleeve35 - 120mm²
Number of clamp positions per level1
Operating temperature-5 - 40°C
Inflammability class of insulation material according to with UL94V2
Closing plate requiredNo
Number of levels1
Connectable conductor cross section fine-strand with cable end sleeve- - -mm²
Mounting methodDIN rail (top hat rail) 35 mm
Rated voltage1000V
Connectable conductor cross section solid-core35 - 120mm²
Rated current In340A
