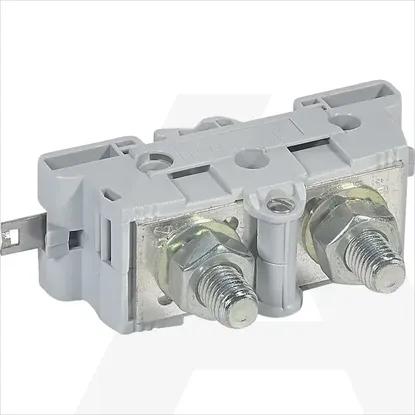

039032 | STEZALJKA ZA SABIRNICU 70MM2
Code: 1772836
Details
- •Terminal blocks
- •(Knife) disconnect terminal block
- •5 KOM
- •LEGRAND
Technical specifications
Connectable conductor cross section multi-wired- - -mm²
Connectable conductor cross section solid-core- - -mm²
Rated current In-A
Connectable conductor cross section fine-strand with cable end sleeve- - -mm²
With integrated test socketNo
Number of clamp positions per level1
Number of levels1
Mounting methodG-rail
Internally connected stagesNo
Operating temperature-5 - 40°C
Type of electrical connection 2Bolt connection
Depth84mm
Closing plate requiredNo
Connectable conductor cross section fine-strand without cable end sleeve70 - 70mm²
Width34mm
Inflammability class of insulation material according to with UL94V2
Material insulation bodyThermoplastic
Height61mm
Type of electrical connection 1Bolt connection
ColourGrey
Rated voltage1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
039032 | STEZALJKA ZA SABIRNICU 70MM2
Details
- Terminal blocks
- (Knife) disconnect terminal block
- 5 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Connectable conductor cross section multi-wired
- .. -mm²
Connectable conductor cross section solid-core
- .. -mm²
Rated current In
-A
Connectable conductor cross section fine-strand with cable end sleeve
- .. -mm²
With integrated test socket
Number of clamp positions per level
1
Number of levels
1
Mounting method
G-rail
Internally connected stages
Operating temperature
-5 .. 40°C
Type of electrical connection 2
Bolt connection
Depth
84mm
Closing plate required
Connectable conductor cross section fine-strand without cable end sleeve
70 .. 70mm²
Width
34mm
Inflammability class of insulation material according to with UL94
V2
Material insulation body
Thermoplastic
Height
61mm
Type of electrical connection 1
Bolt connection
Colour
Grey
Rated voltage
1000V
