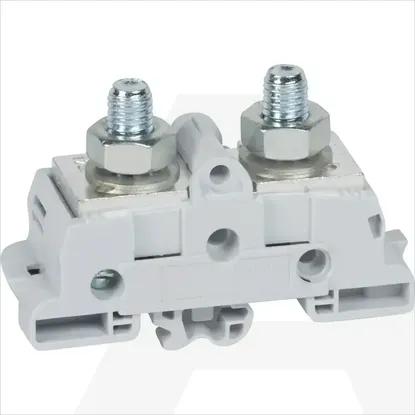

039033 | STEZALJKA ZA SABIRNICU 120MM2
Code: 1772837
Details
- •Terminal blocks
- •(Knife) disconnect terminal block
- •5 KOM
- •LEGRAND
Technical specifications
Connectable conductor cross section multi-wired- - -mm²
Connectable conductor cross section solid-core- - -mm²
Rated current In-A
Connectable conductor cross section fine-strand with cable end sleeve- - -mm²
With integrated test socketNo
Number of levels1
Rated voltage1000V
Connectable conductor cross section fine-strand without cable end sleeve120 - 120mm²
Mounting methodG-rail
Number of clamp positions per level1
Type of electrical connection 1Bolt connection
Operating temperature-5 - 40°C
Type of electrical connection 2Bolt connection
Material insulation bodyThermoplastic
Internally connected stagesNo
Inflammability class of insulation material according to with UL94V2
Height61mm
ColourGrey
Width34mm
Depth84mm
Closing plate requiredNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
039033 | STEZALJKA ZA SABIRNICU 120MM2
Details
- Terminal blocks
- (Knife) disconnect terminal block
- 5 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Connectable conductor cross section multi-wired
- .. -mm²
Connectable conductor cross section solid-core
- .. -mm²
Rated current In
-A
Connectable conductor cross section fine-strand with cable end sleeve
- .. -mm²
With integrated test socket
Number of levels
1
Rated voltage
1000V
Connectable conductor cross section fine-strand without cable end sleeve
120 .. 120mm²
Mounting method
G-rail
Number of clamp positions per level
1
Type of electrical connection 1
Bolt connection
Operating temperature
-5 .. 40°C
Type of electrical connection 2
Bolt connection
Material insulation body
Thermoplastic
Internally connected stages
Inflammability class of insulation material according to with UL94
V2
Height
61mm
Colour
Grey
Width
34mm
Depth
84mm
Closing plate required
