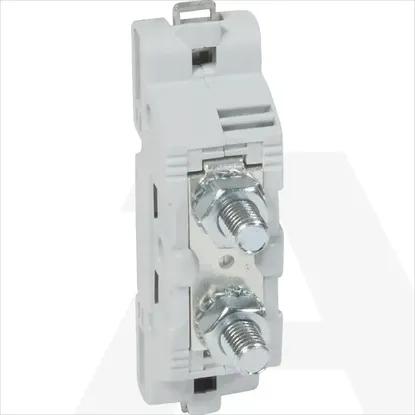

Details
- •Terminal blocks
- •(Knife) disconnect terminal block
- •5 KOM
- •LEGRAND
Technical specifications
Width26mm
Depth84mm
Mounting methodDIN rail (top hat rail) 35 mm
ColourGrey
Height56mm
Rated voltage1000V
Inflammability class of insulation material according to with UL94V2
Type of electrical connection 2Bolt connection
Operating temperature-5 - 40°C
Type of electrical connection 1Bolt connection
Closing plate requiredNo
Internally connected stagesNo
Connectable conductor cross section solid-core- - -mm²
With integrated test socketNo
Rated current In-A
Connectable conductor cross section fine-strand with cable end sleeve- - -mm²
Number of clamp positions per level1
Number of levels1
Material insulation bodyThermoplastic
Connectable conductor cross section fine-strand without cable end sleeve35 - 35mm²
Connectable conductor cross section multi-wired- - -mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
