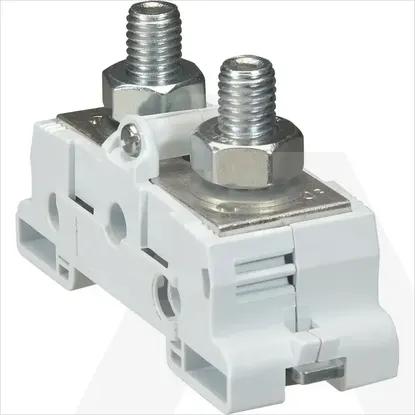

039072 | REDNA STEZALJKA 70MM2
Code: 1772840
Details
- •Terminal blocks
- •(Knife) disconnect terminal block
- •5 KOM
- •LEGRAND
Technical specifications
Connectable conductor cross section multi-wired- - -mm²
Connectable conductor cross section solid-core- - -mm²
Rated current In-A
Connectable conductor cross section fine-strand with cable end sleeve- - -mm²
With integrated test socketNo
Type of electrical connection 1Bolt connection
Type of electrical connection 2Bolt connection
Number of levels1
Rated voltage1000V
Number of clamp positions per level1
Connectable conductor cross section fine-strand without cable end sleeve70 - 70mm²
Material insulation bodyThermoplastic
Mounting methodDIN rail (top hat rail) 35 mm
Height61mm
Operating temperature-5 - 40°C
Width34mm
ColourGrey
Closing plate requiredNo
Depth84mm
Internally connected stagesNo
Inflammability class of insulation material according to with UL94V2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
