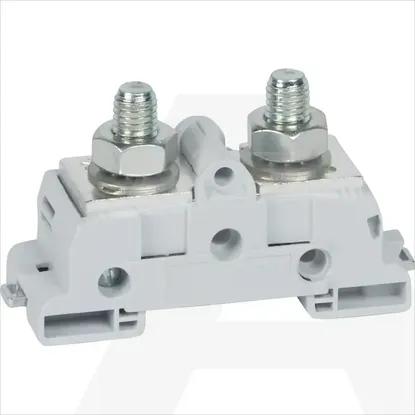

039073 | STEZALJKA ZA SABIRNICU 120MM2
Code: 1772841
Details
- •Terminal blocks
- •(Knife) disconnect terminal block
- •5 KOM
- •LEGRAND
Technical specifications
Connectable conductor cross section multi-wired- - -mm²
Connectable conductor cross section solid-core- - -mm²
Rated current In-A
Connectable conductor cross section fine-strand with cable end sleeve- - -mm²
With integrated test socketNo
Connectable conductor cross section fine-strand without cable end sleeve120 - 120mm²
Type of electrical connection 2Bolt connection
Rated voltage1000V
Type of electrical connection 1Bolt connection
Height61mm
Internally connected stagesNo
Depth84mm
Number of clamp positions per level1
Operating temperature-5 - 40°C
Material insulation bodyThermoplastic
Closing plate requiredNo
ColourGrey
Inflammability class of insulation material according to with UL94V2
Width34mm
Number of levels1
Mounting methodDIN rail (top hat rail) 35 mm
