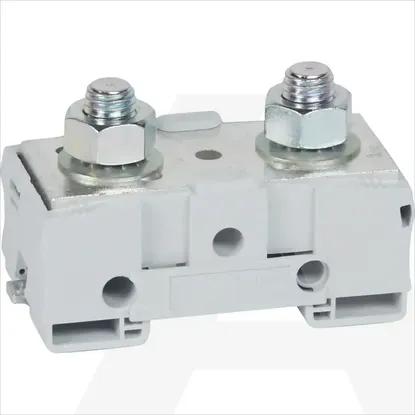

039074 | STEZALJKA ZA SABIRNICU 240MM2
Code: 1772842
Details
- •Terminal blocks
- •(Knife) disconnect terminal block
- •5 KOM
- •LEGRAND
Technical specifications
Connectable conductor cross section multi-wired- - -mm²
Connectable conductor cross section solid-core- - -mm²
Rated current In-A
Connectable conductor cross section fine-strand with cable end sleeve- - -mm²
With integrated test socketNo
Type of electrical connection 1Bolt connection
Number of clamp positions per level1
Number of levels1
Internally connected stagesNo
Connectable conductor cross section fine-strand without cable end sleeve240 - 240mm²
Height64mm
Type of electrical connection 2Bolt connection
Depth86mm
Inflammability class of insulation material according to with UL94V2
Closing plate requiredNo
Width46mm
Material insulation bodyThermoplastic
ColourGrey
Operating temperature-5 - 40°C
Rated voltage1000V
Mounting methodDIN rail (top hat rail) 35 mm
