Details
- •Low-voltage industrial components

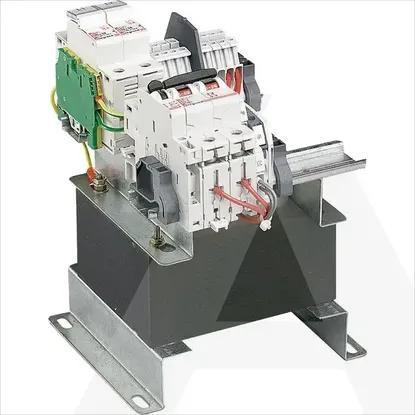

- •One-phase control transformer
- •1 KOM
- •LEGRAND
Technical specifications
Width216mm
Primary voltage 1215 - 215V
Depth210mm
Degree of protection (IP)IP20
Modular versionNo
Height232mm
Primary voltage 2230 - 230V
Type of insulation material according to IEC 85B
Built as safety transformerYes
Short-circuit-proofYes
Primary voltage 4385 - 385V
Built as energy saving transformerNo
Primary voltage 5400 - 400V
Primary voltage 10- - -V
Ring coreNo
Primary voltage 3245 - 245V
Suitable for mounting on PCBNo
Built as isolating transformerNo
Primary voltage 8- - -V
Primary voltage 7- - -V
Primary voltage 6415 - 415V
Secondary voltage 5- - -V
Secondary voltage 248 - 48V
Relative short circuit voltage2.5%
Rated apparent power1000VA
Secondary voltage 9- - -V
Secondary voltage 8- - -V
Secondary voltage 6- - -V
Secondary voltage 7- - -V
Primary voltage 9- - -V
Secondary voltage 4- - -V
Secondary voltage 124 - 24V
Secondary voltage 3- - -V
Secondary voltage 10- - -V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
042667 | TRAN 1000VA 230V TDCE V1 2X24V
