Details

  • •Low-voltage industrial components

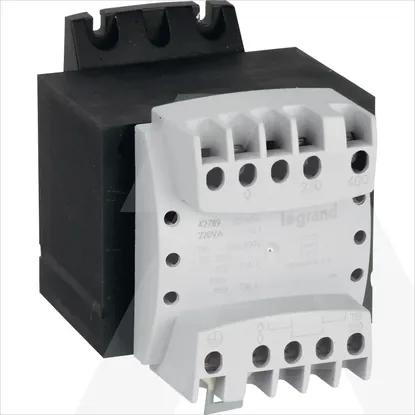

  • •One-phase control transformer
  • •1 KOM
  • •LEGRAND

Technical specifications

Height115mm
Primary voltage 3- - -V
Depth110mm
Built as energy saving transformerNo
Suitable for mounting on PCBNo
Modular versionNo
Primary voltage 2400 - 400V
Ring coreNo
Width96mm
Built as safety transformerNo
Built as isolating transformerYes
Type of insulation material according to IEC 85B
Short-circuit-proofNo
Primary voltage 5- - -V
Primary voltage 9- - -V
Primary voltage 4- - -V
Secondary voltage 2230 - 230V
Primary voltage 6- - -V
Secondary voltage 3- - -V
Primary voltage 8- - -V
Secondary voltage 10- - -V
Primary voltage 10- - -V
Relative short circuit voltage6.38625%
Secondary voltage 5- - -V
Secondary voltage 8- - -V
Secondary voltage 6- - -V
Secondary voltage 7- - -V
Secondary voltage 9- - -V
Secondary voltage 4- - -V
Primary voltage 7- - -V
Degree of protection (IP)IP2X
Primary voltage 1230 - 230V
Secondary voltage 1115 - 115V
Rated apparent power220VA
