Details
- •Low-voltage industrial components

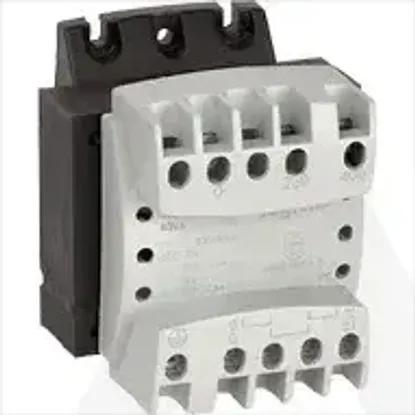

- •One-phase control transformer
- •1 KOM
- •LEGRAND
Technical specifications
Depth98mm
Primary voltage 3- - -V
Primary voltage 1230 - 230V
Width84mm
Suitable for mounting on PCBNo
Modular versionYes
Built as energy saving transformerNo
Built as safety transformerYes
Built as isolating transformerNo
Primary voltage 2400 - 400V
Height104mm
Degree of protection (IP)IP2X
Ring coreNo
Primary voltage 6- - -V
Type of insulation material according to IEC 85B
Primary voltage 4- - -V
Primary voltage 10- - -V
Relative short circuit voltage7.9360746073%
Primary voltage 7- - -V
Short-circuit-proofNo
Primary voltage 9- - -V
Primary voltage 8- - -V
Primary voltage 5- - -V
Secondary voltage 112 - 12V
Secondary voltage 7- - -V
Secondary voltage 6- - -V
Secondary voltage 9- - -V
Secondary voltage 4- - -V
Secondary voltage 10- - -V
Secondary voltage 8- - -V
Rated apparent power160VA
Secondary voltage 5- - -V
Secondary voltage 3- - -V
Secondary voltage 224 - 24V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
042843 | TRANSF 12/24V 160VA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- One-phase control transformer
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Depth
98mm
Primary voltage 3
- .. -V
Primary voltage 1
230 .. 230V
Width
84mm
Suitable for mounting on PCB
Modular version
Built as energy saving transformer
Built as safety transformer
Built as isolating transformer
Primary voltage 2
400 .. 400V
Height
104mm
Degree of protection (IP)
IP2X
Ring core
Primary voltage 6
- .. -V
Type of insulation material according to IEC 85
B
Primary voltage 4
- .. -V
Primary voltage 10
- .. -V
Relative short circuit voltage
7.9360746073%
Primary voltage 7
- .. -V
Short-circuit-proof
Primary voltage 9
- .. -V
Primary voltage 8
- .. -V
Primary voltage 5
- .. -V
Secondary voltage 1
12 .. 12V
Secondary voltage 7
- .. -V
Secondary voltage 6
- .. -V
Secondary voltage 9
- .. -V
Secondary voltage 4
- .. -V
Secondary voltage 10
- .. -V
Secondary voltage 8
- .. -V
Rated apparent power
160VA
Secondary voltage 5
- .. -V
Secondary voltage 3
- .. -V
Secondary voltage 2
24 .. 24V
