Details

  • •Low-voltage industrial components

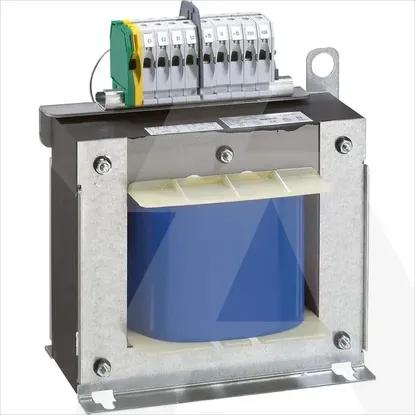

  • •One-phase control transformer
  • •1 KOM
  • •LEGRAND

Technical specifications

Modular versionNo
Built as energy saving transformerNo
Width220mm
Suitable for mounting on PCBNo
Height222mm
Primary voltage 3- - -V
Short-circuit-proofNo
Type of insulation material according to IEC 85B
Built as isolating transformerNo
Primary voltage 2400 - 400V
Depth170mm
Built as safety transformerYes
Ring coreNo
Primary voltage 4- - -V
Primary voltage 10- - -V
Primary voltage 6- - -V
Relative short circuit voltage2.383372%
Primary voltage 5- - -V
Primary voltage 9- - -V
Secondary voltage 5- - -V
Secondary voltage 7- - -V
Secondary voltage 3- - -V
Secondary voltage 8- - -V
Primary voltage 8- - -V
Secondary voltage 9- - -V
Secondary voltage 6- - -V
Secondary voltage 4- - -V
Primary voltage 7- - -V
Secondary voltage 224 - 24V
Secondary voltage 10- - -V
Degree of protection (IP)IP00
Primary voltage 1230 - 230V
Secondary voltage 112 - 12V
Rated apparent power1000VA
