Details
- •Low-voltage industrial components
- •One-phase control transformer
- •1 KOM
- •LEGRAND
Technical specifications
Primary voltage 1215 - 215V
Primary voltage 3245 - 245V
Depth113mm
Height112mm
Suitable for mounting on PCBNo
Primary voltage 2230 - 230V
Degree of protection (IP)IP2X
Width94mm
Modular versionYes
Built as energy saving transformerNo
Built as safety transformerYes
Ring coreNo
Short-circuit-proofNo
Type of insulation material according to IEC 85B
Built as isolating transformerNo
Primary voltage 8- - -V
Primary voltage 10- - -V
Primary voltage 4385 - 385V
Primary voltage 7- - -V
Primary voltage 5400 - 400V
Primary voltage 9- - -V
Primary voltage 6415 - 415V
Secondary voltage 7- - -V
Secondary voltage 5- - -V
Secondary voltage 8- - -V
Secondary voltage 248 - 48V
Secondary voltage 3- - -V
Secondary voltage 4- - -V
Secondary voltage 6- - -V
Secondary voltage 10- - -V
Relative short circuit voltage7.23%
Secondary voltage 124 - 24V
Secondary voltage 9- - -V
Rated apparent power160VA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

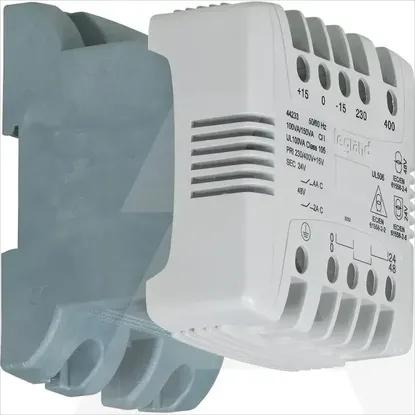

044234 | TRANSF.230V-24/48 160VA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- One-phase control transformer
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Primary voltage 1
215 .. 215V
Primary voltage 3
245 .. 245V
Depth
113mm
Height
112mm
Suitable for mounting on PCB
Primary voltage 2
230 .. 230V
Degree of protection (IP)
IP2X
Width
94mm
Modular version
Built as energy saving transformer
Built as safety transformer
Ring core
Short-circuit-proof
Type of insulation material according to IEC 85
B
Built as isolating transformer
Primary voltage 8
- .. -V
Primary voltage 10
- .. -V
Primary voltage 4
385 .. 385V
Primary voltage 7
- .. -V
Primary voltage 5
400 .. 400V
Primary voltage 9
- .. -V
Primary voltage 6
415 .. 415V
Secondary voltage 7
- .. -V
Secondary voltage 5
- .. -V
Secondary voltage 8
- .. -V
Secondary voltage 2
48 .. 48V
Secondary voltage 3
- .. -V
Secondary voltage 4
- .. -V
Secondary voltage 6
- .. -V
Secondary voltage 10
- .. -V
Relative short circuit voltage
7.23%
Secondary voltage 1
24 .. 24V
Secondary voltage 9
- .. -V
Rated apparent power
160VA
