Details
- •Low-voltage industrial components
- •One-phase control transformer
- •1 KOM
- •LEGRAND
Technical specifications
Width150mm
Height199mm
Depth206mm
Modular versionNo
Secondary voltage 10- - -V
Primary voltage 1215 - 215V
Primary voltage 3245 - 245V
Primary voltage 6415 - 415V
Primary voltage 5400 - 400V
Degree of protection (IP)Other
Primary voltage 10- - -V
Secondary voltage 248 - 48V
Primary voltage 8- - -V
Suitable for mounting on PCBNo
Primary voltage 2230 - 230V
Primary voltage 4385 - 385V
Primary voltage 9- - -V
Short-circuit-proofNo
Secondary voltage 124 - 24V
Relative short circuit voltage2.37%
Ring coreNo
Secondary voltage 3- - -V
Primary voltage 7- - -V
Secondary voltage 5- - -V
Type of insulation material according to IEC 85B
Built as energy saving transformerNo
Secondary voltage 4- - -V
Built as safety transformerYes
Built as isolating transformerNo
Secondary voltage 9- - -V
Secondary voltage 7- - -V
Secondary voltage 6- - -V
Secondary voltage 8- - -V
Rated apparent power1000VA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

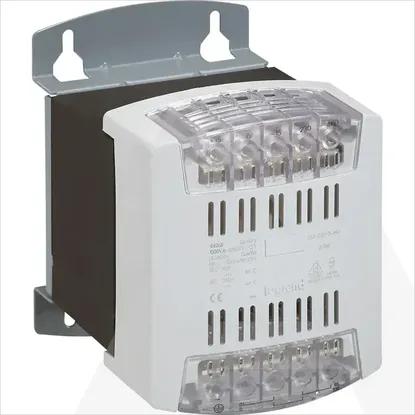

044238 | TRANSF.230V-24/48 1000VA
