Details

  • •Low-voltage industrial components

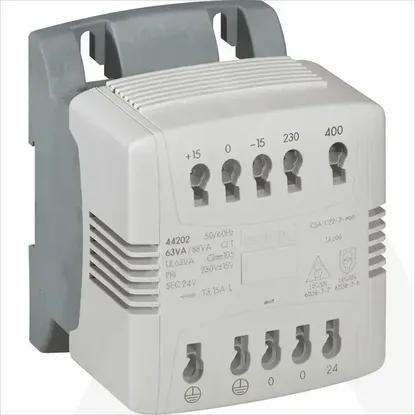

  • •One-phase control transformer
  • •1 KOM
  • •LEGRAND

Technical specifications

Height101mm
Depth113mm
Width95mm
Suitable for mounting on PCBNo
Primary voltage 3245 - 245V
Ring coreNo
Built as safety transformerNo
Modular versionYes
Built as energy saving transformerNo
Primary voltage 2230 - 230V
Primary voltage 7- - -V
Primary voltage 8- - -V
Primary voltage 10- - -V
Short-circuit-proofNo
Primary voltage 6415 - 415V
Primary voltage 5400 - 400V
Secondary voltage 3- - -V
Secondary voltage 2- - -V
Primary voltage 9- - -V
Secondary voltage 10- - -V
Primary voltage 4385 - 385V
Type of insulation material according to IEC 85B
Relative short circuit voltage9.22%
Built as isolating transformerYes
Secondary voltage 5- - -V
Secondary voltage 8- - -V
Secondary voltage 4- - -V
Secondary voltage 7- - -V
Secondary voltage 6- - -V
Secondary voltage 9- - -V
Degree of protection (IP)IP2X
Primary voltage 1215 - 215V
Secondary voltage 1230 - 230V
Rated apparent power63VA
