Details

  • •Low-voltage industrial components

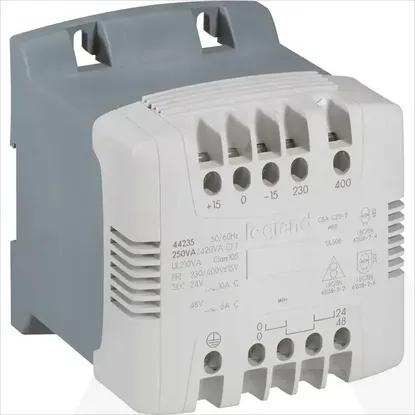

  • •One-phase control transformer
  • •1 KOM
  • •LEGRAND

Technical specifications

Primary voltage 2230 - 230V
Suitable for mounting on PCBNo
Ring coreNo
Modular versionYes
Width106mm
Built as safety transformerNo
Primary voltage 3245 - 245V
Depth115mm
Height123mm
Built as isolating transformerYes
Built as energy saving transformerNo
Short-circuit-proofNo
Primary voltage 4385 - 385V
Type of insulation material according to IEC 85B
Primary voltage 10- - -V
Primary voltage 5400 - 400V
Primary voltage 6415 - 415V
Relative short circuit voltage6.08%
Primary voltage 9- - -V
Secondary voltage 10- - -V
Primary voltage 8- - -V
Primary voltage 7- - -V
Secondary voltage 7- - -V
Secondary voltage 5- - -V
Secondary voltage 8- - -V
Secondary voltage 3- - -V
Secondary voltage 4- - -V
Secondary voltage 2230 - 230V
Secondary voltage 6- - -V
Secondary voltage 9- - -V
Degree of protection (IP)IP2X
Primary voltage 1215 - 215V
Secondary voltage 1115 - 115V
Rated apparent power250VA
