Details
- •Low-voltage industrial components

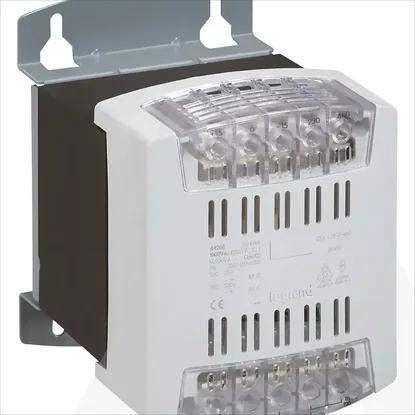

- •One-phase control transformer
- •1 KOM
- •LEGRAND
Technical specifications
Modular versionNo
Primary voltage 1215 - 215V
Height140mm
Degree of protection (IP)IP2X
Width120mm
Primary voltage 2230 - 230V
Depth140mm
Primary voltage 3245 - 245V
Suitable for mounting on PCBNo
Built as energy saving transformerNo
Built as safety transformerNo
Type of insulation material according to IEC 85B
Primary voltage 4385 - 385V
Primary voltage 10- - -V
Short-circuit-proofNo
Ring coreNo
Built as isolating transformerYes
Primary voltage 6415 - 415V
Relative short circuit voltage4.08%
Primary voltage 9- - -V
Primary voltage 8- - -V
Primary voltage 7- - -V
Primary voltage 5400 - 400V
Secondary voltage 5- - -V
Secondary voltage 4- - -V
Secondary voltage 2230 - 230V
Secondary voltage 3- - -V
Secondary voltage 6- - -V
Secondary voltage 1115 - 115V
Secondary voltage 10- - -V
Secondary voltage 7- - -V
Rated apparent power400VA
Secondary voltage 8- - -V
Secondary voltage 9- - -V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
044266 | TRANSFO.230/400
