Details

  • •Low-voltage industrial components

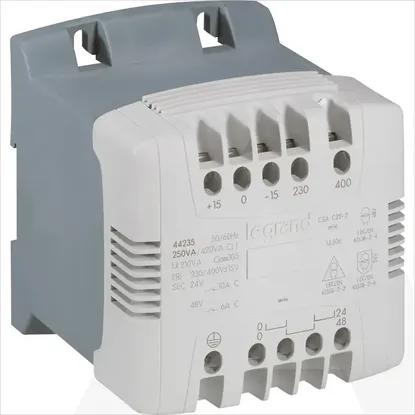

  • •One-phase control transformer
  • •1 KOM
  • •LEGRAND

Technical specifications

Modular versionNo
Depth171mm
Width300mm
Height292mm
Built as energy saving transformerNo
Primary voltage 3480 - 480V
Primary voltage 2460 - 460V
Built as isolating transformerYes
Ring coreNo
Suitable for mounting on PCBNo
Built as safety transformerNo
Type of insulation material according to IEC 85B
Primary voltage 7- - -V
Secondary voltage 5- - -V
Secondary voltage 6- - -V
Secondary voltage 2230 - 230V
Secondary voltage 10- - -V
Primary voltage 5- - -V
Primary voltage 9- - -V
Short-circuit-proofNo
Primary voltage 10- - -V
Secondary voltage 4- - -V
Secondary voltage 3- - -V
Relative short circuit voltage1.66%
Primary voltage 8- - -V
Primary voltage 4- - -V
Primary voltage 6- - -V
Secondary voltage 9- - -V
Secondary voltage 8- - -V
Secondary voltage 7- - -V
Degree of protection (IP)Other
Primary voltage 1440 - 440V
Secondary voltage 1115 - 115V
Rated apparent power2500VA
