Details
- •Cables
- •Power cable >= 1 kV, for permanent installation
- •1 KOM
- •LEGRAND
Technical specifications
Conductor materialCopper
UV resistantYes
Drain wireYes
Material outer sheathOther
Material core insulationOther
Core identificationColour
Colour outer sheathGreen
Lead sheathNo
Nominal voltage U4kV
Conductor categoryClass 2 = stranded
Nominal cross section conductor0.8mm²
Diameter conductor0.5mm
Shape of conductorRound
Fibre optic elementsNo
Number of pilot/reduced cores0
Permitted cable outer temperature during assembling/handling-25 - 70°C
Nominal cross section concentric conductor0.5mm²
Cable height approx.5.5mm
Longitudinal water blocking screenNo
Suitable for underground installationNo
Laminated sheathYes
Number of cores2
Conductive coatingNo
With protective conductorNo
Outer semi-conducting layerNo
Nominal voltage U02.5kV
ScreenYes
Cable width approx.5.5mm
Longitudinal water blocking conductorsNo
Outer diameter approx.5.5mm
Conductor surfaceBare
Inner semi-conducting layerNo
Low smoke (according to IEC 61034-2)Yes
Max. conductor temperature-°C
Concentric conductorCopper
Halogen free (according to IEC 60754-2)Yes
Permitted cable outer temperature after assembling without vibration-25 - 70°C
Halogen free according to IEC 60754-1Yes
Suitable as installation cableYes
Specification material outer sheathOther
Nominal cross section conductor (AWG)-kcmil
Min. permitted bending radius, stationary application/permanent installation-mm
Cable geometryRound
Number of strands per conductor1
Conductor resistance at 20 °C10000Ohm/km
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

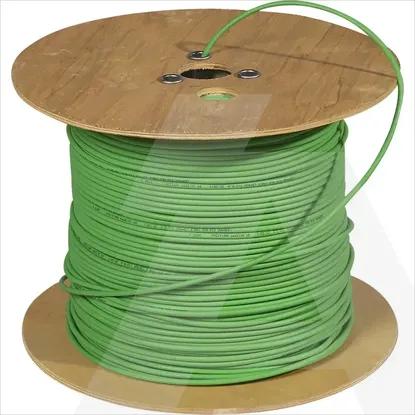

049291 | KNX BUS KABEL 500 M.
