Details
- •Cables
- •Power cable >= 1 kV, for permanent installation
- •1 KOM
- •LEGRAND
Technical specifications
Lead sheathNo
Nominal cross section conductor0.8mm²
Material core insulationOther
Core identificationColour
UV resistantYes
Conductor materialCopper
Nominal voltage U02.5kV
Laminated sheathYes
Shape of conductorRound
Conductor categoryClass 2 = stranded
Number of pilot/reduced cores0
Colour outer sheathGreen
Permitted cable outer temperature during assembling/handling-25 - 70°C
Fibre optic elementsNo
Permitted cable outer temperature after assembling without vibration-25 - 70°C
Longitudinal water blocking screenNo
Number of cores4
Concentric conductorCopper
Drain wireYes
Outer semi-conducting layerNo
Longitudinal water blocking conductorsNo
Diameter conductor0.5mm
Material outer sheathOther
ScreenYes
Inner semi-conducting layerNo
Nominal voltage U4kV
Suitable for underground installationNo
Halogen free (according to IEC 60754-2)Yes
Nominal cross section concentric conductor0.5mm²
Cable width approx.7.7mm
Min. permitted bending radius, stationary application/permanent installation-mm
Cable height approx.7.7mm
Outer diameter approx.7.7mm
Low smoke (according to IEC 61034-2)Yes
Conductor surfaceBare
Halogen free according to IEC 60754-1Yes
Specification material outer sheathOther
Nominal cross section conductor (AWG)-kcmil
With protective conductorNo
Suitable as installation cableYes
Specification core insulationOther
Max. conductor temperature-°C
Cable geometryRound
Conductive coatingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

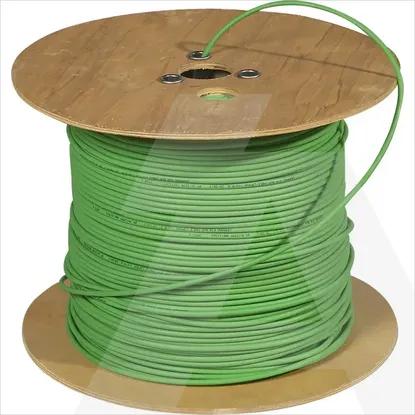

049292 | KNX BUS KABEL 2 PAIRS 500 M.
