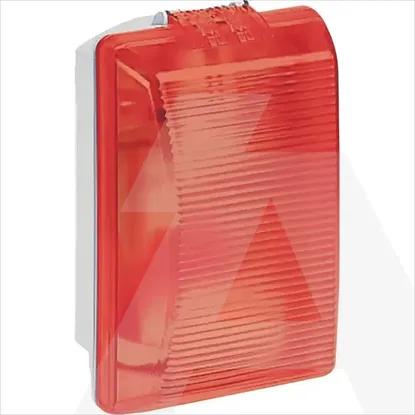

062402 | Bulkhead Light E27 75W
Code: 1774221
ManufacturerLegrand
Catalog number062402
TypeLegrand 062402
CategoryCeiling-/wall luminaire
EAN code3245060624026
Details
- •Luminaires
- •Ceiling-/wall luminaire
- •Minimum order quantity: 5 pcs
- •LEGRAND
Technical specifications
Protection classII
Lamp typeIncandescent lamp
Built-in diameter-mm
Suitable for emergency lightingNo
Length219mm
With movement sensorNo
Suitable for suspended mountingNo
Height/depth113mm
Material housingPlastic
Built-in length219mm
Conductor cross section-mm²
Number of poles-
Built-in width-mm
With light sensorNo
Type of gridNone
Type of control gearNot required
Voltage typeAC
Suitable for light line configurationNo
Width140mm
Colour rendering index CRI90-100
Lamp holderE27
Outer diameter-mm
Material coverPlastic, opal
Suitable for wall mountingYes
With control gearNo
Suitable for surface mountingYes
Colour temperature2700 - 2700K
With light sourceNo
Beam angleExtreme wide beam >80°
Luminaire with limited surface temperature, sign "D“No
Suitable for workplace according to EN 12464-1No
Suitable for built-in mountingNo
Impact strengthIK08
Suitable for number of lamps1
Degree of protection (IP)IP54
Light outletDirect
Light sharingAsymmetric
Covering of the luminaire with thermally insulating material possibleNo
Max. system power75W
Rated life time L70/B10 at 25 °C-h
Rated life time L80/B10 at 25 °C-h
Rated life time L70/B50 at 25 °C-h
Colour of lightWhite
Rated luminous flux according to IEC 62722-2-1900lm
With air slotsNo
Rated life time L80/B50 at 25 °C-h
Rated ambient temperature according to IEC62722-2-1-10 - 40°C
Dimming 1-10 VNo
Rated life time L90/B10 at 25 °C-h
Dimming 0-10 VNo
Dimming phase cut-onNo
Dimming DMXNo
LED nominal current at constant current326 - 681mA
Dimming programmableNo
Dimming GPRSNo
Dimming ZigbeeNo
Dimming DALINo
Dimming Sine Wave ReductionNo
Dimming mains voltage modulationNo
Dimming phase cut-offNo
Dimming RFNo
Dimming with push-buttonNo
Dimming manufacturer's proprietary systemNo
Dimming potentiometer (integrated)No
Rated life time L90/B50 at 25 °C-h
Dimming Touch and DimNo
Dimming LineSwitchNo
No dim functionYes
Light distributorDiffuser lens/optic/panel
Dimming DSINo
Dimming depending on control gearNo
Luminaire efficacy-lm/W
Built-in height/depth-mm
Suitable for ceiling mountingYes
Power factor-
Colour housingGrey
Suitable for lamp power75 - 75W
Nominal voltage110 - 230V
