Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Rated current16A
Release characteristicC
Built-in depth40mm
Rated voltage230V
Rated insulation voltage Ui-V
Voltage typeAC
Width in number of modular spacings45
Current limiting class-
Degree of protection (IP)IP21
Number of poles (total)2
Concurrently switching neutral conductorYes
Pollution degree-
Leakage current typeOther
Frequency50/60 Hz
Rated short-circuit breaking capacity according to IEC 60947-23kA
Connectable conductor cross section multi-wired- - -mm²
With interlocking deviceNo
Over voltage category-
Number of protected poles1
Surge current capacity-kA
Ambient temperature during operating-5 - 40°C
Suitable for flush-mounted installationYes
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity according to EN 610093kA
Anti-nuisance tripping versionYes
Rated fault current-A
Connectable conductor cross section solid-core2.5 - 2.5mm²
Rated short-circuit breaking capacity Icn according to EN 61009-13kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

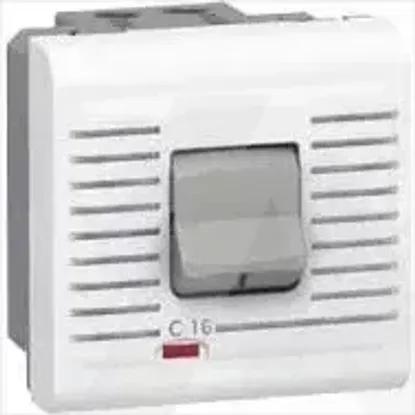

077522 | TERMOMAGNETSKI 16 A
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Rated current
16A
Release characteristic
C
Built-in depth
40mm
Rated voltage
230V
Rated insulation voltage Ui
-V
Voltage type
AC
Width in number of modular spacings
45
Current limiting class
-
Degree of protection (IP)
IP21
Number of poles (total)
2
Concurrently switching neutral conductor
Pollution degree
-
Leakage current type
Other
Frequency
50/60 Hz
Rated short-circuit breaking capacity according to IEC 60947-2
3kA
Connectable conductor cross section multi-wired
- .. -mm²
With interlocking device
Over voltage category
-
Number of protected poles
1
Surge current capacity
-kA
Ambient temperature during operating
-5 .. 40°C
Suitable for flush-mounted installation
Rated impulse withstand voltage Uimp
-kV
Rated short-circuit breaking capacity according to EN 61009
3kA
Anti-nuisance tripping version
Rated fault current
-A
Connectable conductor cross section solid-core
2.5 .. 2.5mm²
Rated short-circuit breaking capacity Icn according to EN 61009-1
3kA
