Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Rated voltage230V
Built-in depth40mm
Voltage typeAC
Rated current10A
Release characteristicC
Leakage current typeOther
Over voltage category-
Current limiting class-
Surge current capacity-kA
Rated insulation voltage Ui-V
Rated fault current0.03A
Width in number of modular spacings45
Pollution degree-
Degree of protection (IP)IP21
Rated short-circuit breaking capacity according to IEC 60947-23kA
Suitable for flush-mounted installationYes
Number of protected poles1
Concurrently switching neutral conductorYes
With interlocking deviceNo
Number of poles (total)2
Rated short-circuit breaking capacity according to EN 610093kA
Anti-nuisance tripping versionYes
Rated short-circuit breaking capacity Icn according to EN 61009-13kA
Connectable conductor cross section solid-core2.5 - 2.5mm²
Ambient temperature during operating-5 - 40°C
Connectable conductor cross section multi-wired- - -mm²
Rated impulse withstand voltage Uimp-kV
Frequency50/60 Hz
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

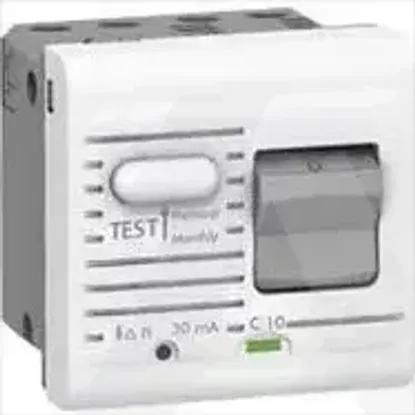

077531 | KZS 10 1P+N 30MA
