Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Surge current capacity-kA
Built-in depth40mm
Leakage current typeOther
Rated fault current0.01A
Release characteristicC
Rated current16A
Rated insulation voltage Ui-V
Rated voltage230V
Anti-nuisance tripping versionYes
Connectable conductor cross section multi-wired- - -mm²
Connectable conductor cross section solid-core2.5 - 2.5mm²
Frequency50/60 Hz
Degree of protection (IP)IP21
Current limiting class-
Number of poles (total)2
Rated short-circuit breaking capacity according to IEC 60947-23kA
Ambient temperature during operating-5 - 40°C
Number of protected poles1
Concurrently switching neutral conductorYes
With interlocking deviceNo
Suitable for flush-mounted installationYes
Width in number of modular spacings45
Pollution degree-
Over voltage category-
Rated impulse withstand voltage Uimp-kV
Rated short-circuit breaking capacity according to EN 610093kA
Rated short-circuit breaking capacity Icn according to EN 61009-13kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

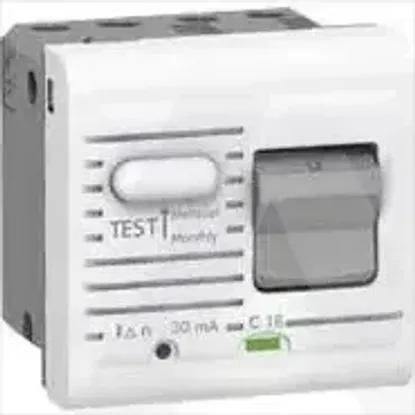

077534 | KZS 16 1P+N 10MA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Earth leakage circuit breaker
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Voltage type
AC
Surge current capacity
-kA
Built-in depth
40mm
Leakage current type
Other
Rated fault current
0.01A
Release characteristic
C
Rated current
16A
Rated insulation voltage Ui
-V
Rated voltage
230V
Anti-nuisance tripping version
Connectable conductor cross section multi-wired
- .. -mm²
Connectable conductor cross section solid-core
2.5 .. 2.5mm²
Frequency
50/60 Hz
Degree of protection (IP)
IP21
Current limiting class
-
Number of poles (total)
2
Rated short-circuit breaking capacity according to IEC 60947-2
3kA
Ambient temperature during operating
-5 .. 40°C
Number of protected poles
1
Concurrently switching neutral conductor
With interlocking device
Suitable for flush-mounted installation
Width in number of modular spacings
45
Pollution degree
-
Over voltage category
-
Rated impulse withstand voltage Uimp
-kV
Rated short-circuit breaking capacity according to EN 61009
3kA
Rated short-circuit breaking capacity Icn according to EN 61009-1
3kA
