Details
- •Connection devices

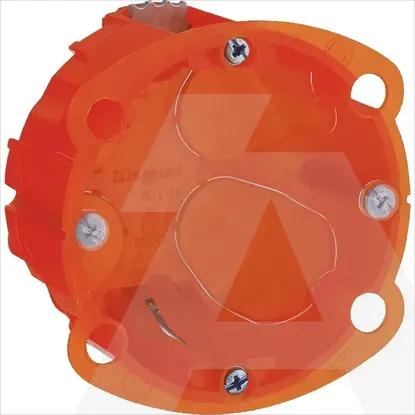

- •Box/housing for built-in mounting in the wall/ceiling
- •20 KOM
- •LEGRAND
Technical specifications
ModelSingle
Length72mm
Mounting methodOther
Halogen freeYes
Equipped withNone
Diameter67mm
Width72mm
Construction typeDevice connection box (round/square)
ColourOrange
ShapeRound
Surface protectionUntreated
ConnectableNo
Internal depth38mm
Max. conductor cross section0mm²
Provided with revolving ringNo
Number of inlets4
Circuit integrityNone
Degree of protection (IP)IP20
Mounting switching equipmentScrew or spread out
Depth- - -mm
NozzleNone
Cover attachmentOther
Pipe lockingNo
For tube diameter20/25 mm
Luminaire hook mountingNo
With screwsYes
Clamp position fixedNo
Suitable for cable diameter20 - 25mm
For number of electric fittings2
Housing feed-through by seal membraneNo
MaterialPlastic
With nail lugsNo
Number of poles of the clamp0
Air tightNo
SealableNo
Inlet from the rearYes
With screeningNo
Housing feed-through by step membraneNo
Cover modelNone
Housing feed-through by nozzleNo
Transparent coverNo
Number of included spouts-
Pipe locking optionalNo
Housing feed-through by break-out openingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
080101 | MULTIMATERIJAL1-STRUKA D.40MM
