Details
- •Connection devices

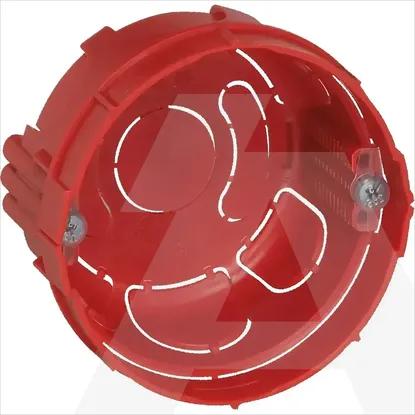

- •Box/housing for built-in mounting in the wall/ceiling
- •100 KOM
- •LEGRAND
Technical specifications
Surface protectionUntreated
ModelSingle
Mounting methodFacing brickwork
ShapeRound
Width60mm
Halogen freeYes
ColourRed
Equipped withNone
Mounting switching equipmentScrewing
Luminaire hook mountingNo
With screeningNo
Cover attachmentOther
With nail lugsNo
For number of electric fittings2
Circuit integrityNone
With screwsYes
MaterialPlastic
Degree of protection (IP)IP20
Suitable for cable diameter16 - 20mm
Number of inlets6
Max. conductor cross section0mm²
Construction typeDevice connection box (round/square)
For tube diameterOther
ConnectableNo
SealableNo
Length67mm
Internal depth40mm
Air tightYes
Diameter67mm
Inlet from the rearYes
Pipe lockingNo
Depth- - -mm
Number of poles of the clamp0
Clamp position fixedNo
Cover modelNone
Pipe locking optionalNo
Provided with revolving ringNo
Transparent coverNo
NozzleNone
Number of included spouts-
Housing feed-through by seal membraneNo
Housing feed-through by nozzleNo
Housing feed-through by step membraneNo
Housing feed-through by break-out openingNo
