Details
- •Cables
- •Power cable < 1 kV, for permanent installation
- •1 KOM
- •LEGRAND
Technical specifications
Nominal cross section conductor0.5mm²
Core identificationColour
Drain wireNo
Material core insulationOther
Colour outer sheathWhite
Conductor materialCopper
Material outer sheathPolyvinyl chloride (PVC)
Permitted cable outer temperature after assembling without vibration-15 - 70°C
With protective conductorNo
Nominal voltage U00V
Diameter conductor1.7mm
Max. conductor temperature70°C
Permitted cable outer temperature during assembling/handling-15 - 70°C
Armouring/reinforcementNone
Low temperature resistant (according to EN 60811-504+505+506)No
Nominal voltage U400V
Conductor categoryClass 2 = stranded
Outer diameter approx.4.8mm
Oil resistant (according to EN 60811-404)No
Number of cores2
Low smoke (according to IEC 61034-2)No
Protective barrierNone
ScreenNo
Twisted coresNo
Min. permitted bending radius, stationary application/permanent installation-mm
Nominal cross section conductor (AWG)-kcmil
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

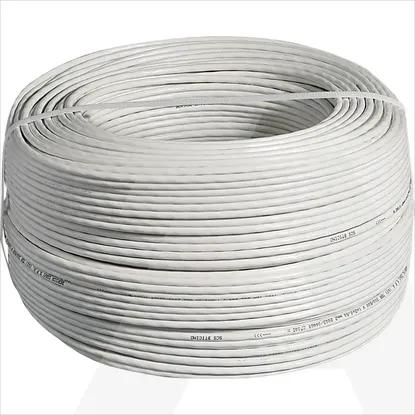

336904 | KABEL (200M KOTUR)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Cables
- Power cable < 1 kV, for permanent installation
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Nominal cross section conductor
0.5mm²
Core identification
Colour
Drain wire
Material core insulation
Other
Colour outer sheath
White
Conductor material
Copper
Material outer sheath
Polyvinyl chloride (PVC)
Permitted cable outer temperature after assembling without vibration
-15 .. 70°C
With protective conductor
Nominal voltage U0
0V
Diameter conductor
1.7mm
Max. conductor temperature
70°C
Permitted cable outer temperature during assembling/handling
-15 .. 70°C
Armouring/reinforcement
None
Low temperature resistant (according to EN 60811-504+505+506)
Nominal voltage U
400V
Conductor category
Class 2 = stranded
Outer diameter approx.
4.8mm
Oil resistant (according to EN 60811-404)
Number of cores
2
Low smoke (according to IEC 61034-2)
Protective barrier
None
Screen
Twisted cores
Min. permitted bending radius, stationary application/permanent installation
-mm
Nominal cross section conductor (AWG)
-kcmil
