Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Leakage current typeAC
Rated voltage230V
Number of poles2
Rated fault current30mA
Frequency50 Hz
Width in number of modular spacings2
Rated current25A
Pollution degree2
Built-in depth44mm
Short-time delayed trippingNo
Selective protectionNo
Short-circuit breaking capacity (Icw)10kA
Surge current capacity0.25kA
Degree of protection (IP)IP20
Rated insulation voltage Ui250V
With interlocking deviceYes
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0.75 - 35mm²
Additional equipment possibleNo
Connectable conductor cross section solid-core0.75 - 50mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

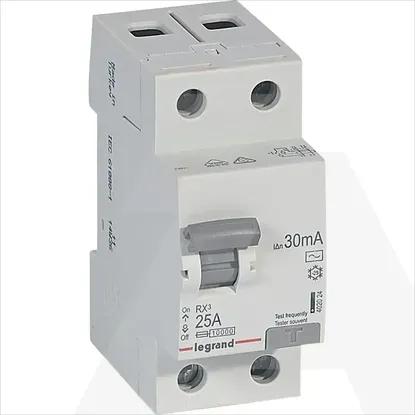

402024 | RX3 FID 25A 2P AC 30MA 2M
