Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Mounting methodDIN rail
Connectable conductor cross section multi-wired0.75 - 35mm²
Frequency50 Hz
Connectable conductor cross section solid-core0.75 - 50mm²
Short-circuit breaking capacity (Icw)10kA
Rated insulation voltage Ui250V
Surge current capacity0.25kA
Degree of protection (IP)IP20
Additional equipment possibleNo
Selective protectionNo
Width in number of modular spacings2
Short-time delayed trippingNo
Rated impulse withstand voltage Uimp4kV
Explosion-proofNo
Pollution degree2
Ambient temperature during operating-25 - 60°C
With interlocking deviceNo
Rated current80A
Rated voltage230V
Number of poles2
Rated fault current0.03A
Leakage current typeAC
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

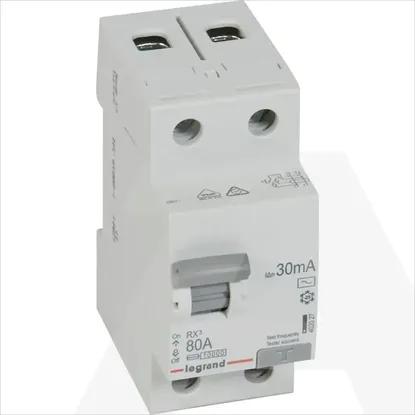

402027 | RX3 FID 80A 2P AC 30MA 2M
