Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Rated insulation voltage Ui250V
Leakage current typeAC
Mounting methodDIN rail
Connectable conductor cross section multi-wired0.75 - 35mm²
Frequency50 Hz
Surge current capacity0.25kA
Short-circuit breaking capacity (Icw)10kA
Connectable conductor cross section solid-core0.75 - 50mm²
Degree of protection (IP)IP20
Additional equipment possibleNo
With interlocking deviceYes
Rated current25A
Rated voltage230V
Number of poles2
Rated fault current0.1A
Selective protectionNo
Pollution degree2
Width in number of modular spacings2
Short-time delayed trippingNo
Explosion-proofNo
Ambient temperature during operating-25 - 60°C
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

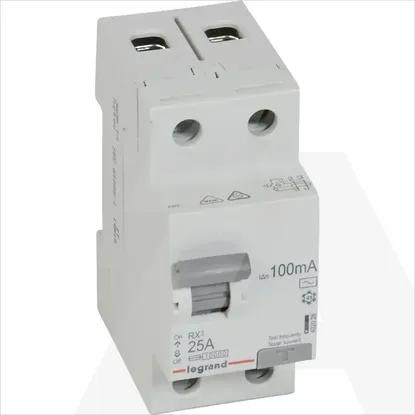

402028 | RX3 FID 25A 2P AC 100MA 2M
