Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Leakage current typeAC
Short-time delayed trippingNo
Short-circuit breaking capacity (Icw)10kA
Ambient temperature during operating-25 - 60°C
Width in number of modular spacings2
Number of poles2
Rated voltage230V
Pollution degree2
Rated current40A
Frequency50 Hz
Connectable conductor cross section multi-wired0.75 - 35mm²
Rated fault current100mA
Additional equipment possibleNo
Degree of protection (IP)IP20
Selective protectionNo
Connectable conductor cross section solid-core0.75 - 50mm²
With interlocking deviceYes
Rated impulse withstand voltage Uimp4kV
Rated insulation voltage Ui250V
Built-in depth44mm
Surge current capacity0.25kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

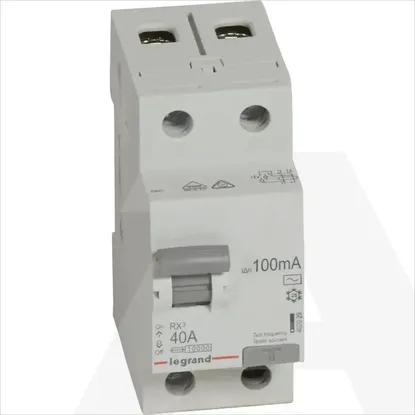

402029 | RX3 FID 40A 2P AC 100MA 2M
