Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Built-in depth44mm
Rated insulation voltage Ui250V
Number of poles2
Rated current63A
Short-circuit breaking capacity (Icw)10kA
Surge current capacity0.25kA
Pollution degree2
Frequency50 Hz
Short-time delayed trippingNo
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0.75 - 50mm²
Rated voltage230V
With interlocking deviceYes
Rated fault current100mA
Width in number of modular spacings2
Additional equipment possibleNo
Leakage current typeAC
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0.75 - 35mm²
Rated impulse withstand voltage Uimp4kV
Selective protectionNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

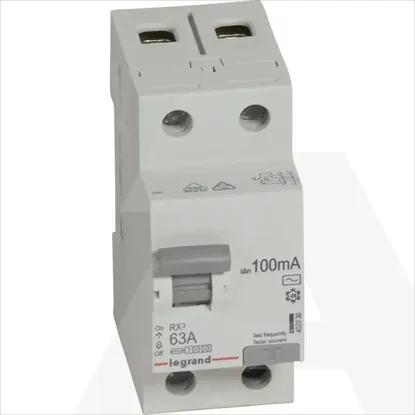

402030 | RX3 FID 63A 2P AC 100MA 2M
