Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Rated insulation voltage Ui250V
Built-in depth44mm
Surge current capacity0.25kA
Leakage current typeAC
Mounting methodDIN rail
Short-circuit breaking capacity (Icw)10kA
Connectable conductor cross section solid-core0.75 - 50mm²
Connectable conductor cross section multi-wired0.75 - 35mm²
With interlocking deviceYes
Degree of protection (IP)IP20
Additional equipment possibleNo
Frequency50 Hz
Rated current25A
Rated voltage230V
Rated fault current0.3A
Rated impulse withstand voltage Uimp4kV
Number of poles2
Ambient temperature during operating-25 - 60°C
Width in number of modular spacings2
Pollution degree2
Explosion-proofNo
Short-time delayed trippingNo
Selective protectionNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

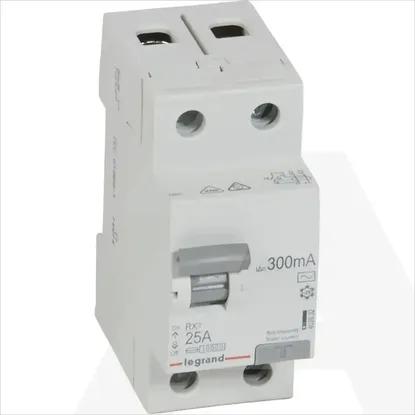

402032 | RX3 FID 25A 2P AC 300MA 2M
