Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Additional equipment possibleNo
Leakage current typeAC
Connectable conductor cross section multi-wired0.75 - 35mm²
Frequency50 Hz
Built-in depth44mm
Connectable conductor cross section solid-core0.75 - 50mm²
Rated insulation voltage Ui250V
With interlocking deviceYes
Mounting methodDIN rail
Short-circuit breaking capacity (Icw)10kA
Degree of protection (IP)IP20
Rated current40A
Rated voltage230V
Number of poles2
Rated fault current0.3A
Selective protectionNo
Surge current capacity0.25kA
Pollution degree2
Width in number of modular spacings2
Short-time delayed trippingNo
Explosion-proofNo
Ambient temperature during operating-25 - 60°C
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

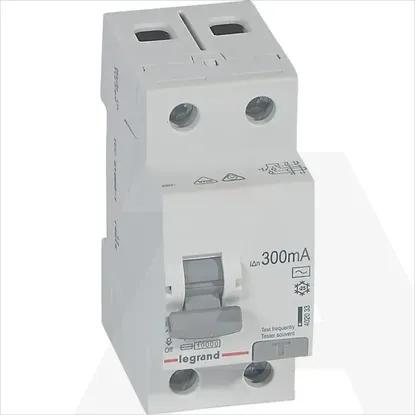

402033 | RX3 FID 40A 2P AC 300MA 2M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB)
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Additional equipment possible
Leakage current type
AC
Connectable conductor cross section multi-wired
0.75 .. 35mm²
Frequency
50 Hz
Built-in depth
44mm
Connectable conductor cross section solid-core
0.75 .. 50mm²
Rated insulation voltage Ui
250V
With interlocking device
Mounting method
DIN rail
Short-circuit breaking capacity (Icw)
10kA
Degree of protection (IP)
IP20
Rated current
40A
Rated voltage
230V
Number of poles
2
Rated fault current
0.3A
Selective protection
Surge current capacity
0.25kA
Pollution degree
2
Width in number of modular spacings
2
Short-time delayed tripping
Explosion-proof
Ambient temperature during operating
-25 .. 60°C
Rated impulse withstand voltage Uimp
4kV
