Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Built-in depth44mm
Rated voltage230V
Rated current40A
Rated fault current30mA
Number of poles2
Surge current capacity0.25kA
Width in number of modular spacings2
Short-time delayed trippingNo
Selective protectionNo
Short-circuit breaking capacity (Icw)10kA
Rated insulation voltage Ui250V
Pollution degree2
Leakage current typeA
Frequency50 Hz
Connectable conductor cross section multi-wired0.75 - 35mm²
Degree of protection (IP)IP20
With interlocking deviceYes
Connectable conductor cross section solid-core0.75 - 50mm²
Additional equipment possibleNo
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-25 - 60°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

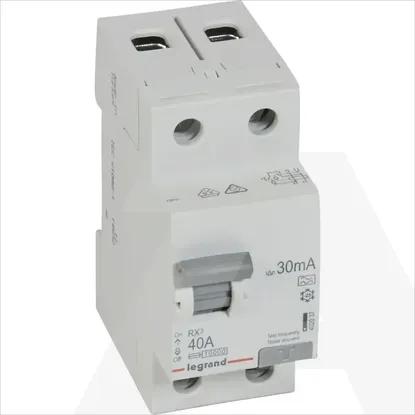

402037 | RX3 FID 40A 2P A 30MA 2M
