Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Surge current capacity0.25kA
Rated voltage230V
Leakage current typeA
Connectable conductor cross section solid-core0.75 - 50mm²
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0.75 - 35mm²
Frequency50 Hz
With interlocking deviceYes
Mounting methodDIN rail
Rated current63A
Rated fault current30mA
Pollution degree2
Short-time delayed trippingNo
Degree of protection (IP)IP20
Rated insulation voltage Ui250V
Number of poles2
Width in number of modular spacings2
Short-circuit breaking capacity (Icw)10kA
Selective protectionNo
Additional equipment possibleNo
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

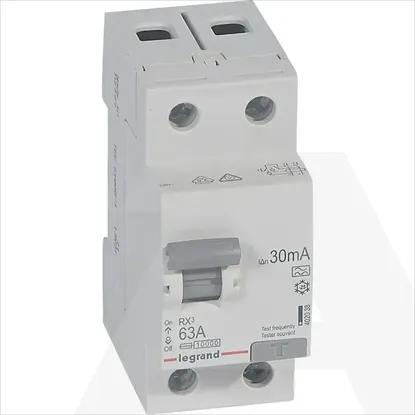

402038 | RX3 FID 63A 2P A 30MA 2M
