Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Leakage current typeAC
Mounting methodDIN rail
With interlocking deviceYes
Short-circuit breaking capacity (Icw)10kA
Connectable conductor cross section solid-core0.75 - 50mm²
Built-in depth44mm
Frequency50 Hz
Connectable conductor cross section multi-wired0.75 - 35mm²
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 60°C
Additional equipment possibleNo
Rated impulse withstand voltage Uimp4kV
Number of poles4
Rated current25A
Selective protectionNo
Rated insulation voltage Ui500V
Short-time delayed trippingNo
Surge current capacity0.25kA
Pollution degree2
Rated voltage400V
Width in number of modular spacings4
Explosion-proofNo
Rated fault current0.03A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

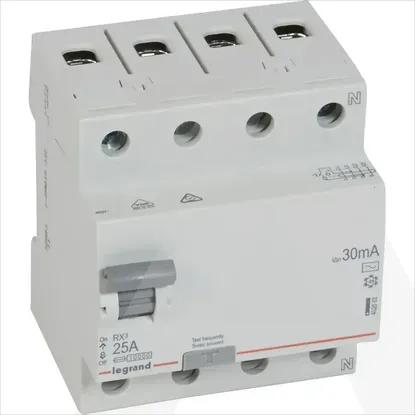

402062 | RX3 FID 25A 4P AC 30MA 4M
