Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Mounting methodDIN rail
Number of poles4
Rated current40A
Leakage current typeAC
Short-circuit breaking capacity (Icw)10kA
Rated insulation voltage Ui500V
Surge current capacity0.25kA
Selective protectionNo
Pollution degree2
Rated voltage400V
Rated fault current30mA
Degree of protection (IP)IP20
Width in number of modular spacings4
Frequency50 Hz
Short-time delayed trippingNo
With interlocking deviceYes
Connectable conductor cross section multi-wired0.75 - 35mm²
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section solid-core0.75 - 50mm²
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

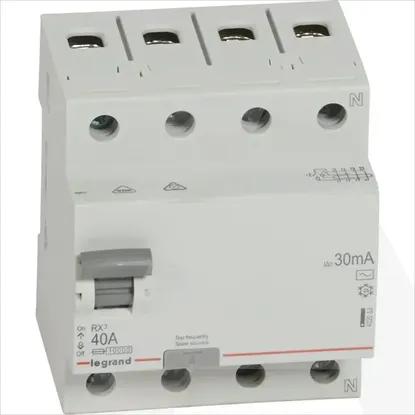

402063 | RX3 FID 40A 4P AC 30MA 4M
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB)
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Built-in depth
44mm
Mounting method
DIN rail
Number of poles
4
Rated current
40A
Leakage current type
AC
Short-circuit breaking capacity (Icw)
10kA
Rated insulation voltage Ui
500V
Surge current capacity
0.25kA
Selective protection
Pollution degree
2
Rated voltage
400V
Rated fault current
30mA
Degree of protection (IP)
IP20
Width in number of modular spacings
4
Frequency
50 Hz
Short-time delayed tripping
With interlocking device
Connectable conductor cross section multi-wired
0.75 .. 35mm²
Ambient temperature during operating
-25 .. 60°C
Connectable conductor cross section solid-core
0.75 .. 50mm²
Rated impulse withstand voltage Uimp
4kV
Additional equipment possible
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
