Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Connectable conductor cross section solid-core0.75 - 50mm²
Surge current capacity0.25kA
Built-in depth44mm
Rated voltage400V
With interlocking deviceYes
Rated fault current100mA
Frequency50 Hz
Rated insulation voltage Ui500V
Selective protectionNo
Additional equipment possibleNo
Short-time delayed trippingNo
Ambient temperature during operating-25 - 60°C
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired0.75 - 35mm²
Width in number of modular spacings4
Pollution degree2
Number of poles4
Degree of protection (IP)IP20
Rated current25A
Leakage current typeAC
Short-circuit breaking capacity (Icw)10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

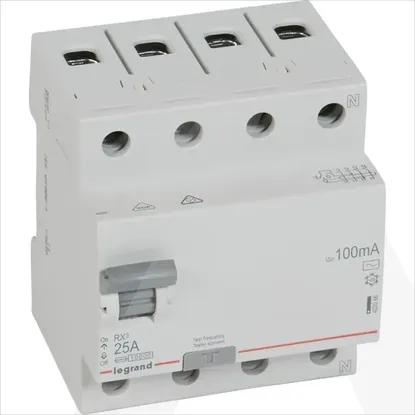

402066 | RX3 FID 25A 4P AC 100MA 4M
