Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Rated fault current100mA
Width in number of modular spacings4
Leakage current typeAC
Rated insulation voltage Ui500V
Pollution degree2
Rated current40A
Surge current capacity0.25kA
Frequency50 Hz
Short-time delayed trippingNo
Connectable conductor cross section solid-core0.75 - 50mm²
Short-circuit breaking capacity (Icw)10kA
Rated voltage400V
Number of poles4
Selective protectionNo
Built-in depth44mm
Mounting methodDIN rail
Additional equipment possibleNo
With interlocking deviceYes
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0.75 - 35mm²
Degree of protection (IP)IP20
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

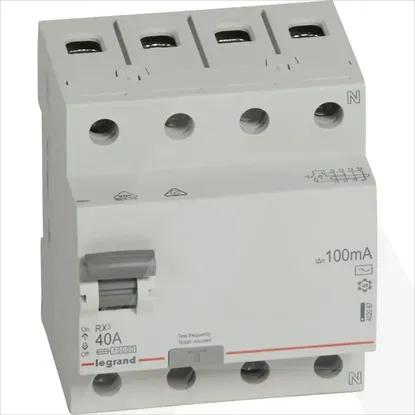

402067 | RX3 FID 40A 4P AC 100MA 4M
