Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Rated current25A
Connectable conductor cross section solid-core0.75 - 50mm²
Built-in depth44mm
Degree of protection (IP)IP20
Number of poles4
Short-circuit breaking capacity (Icw)10kA
Rated insulation voltage Ui500V
Pollution degree2
Width in number of modular spacings4
Surge current capacity0.25kA
Selective protectionNo
Frequency50 Hz
Leakage current typeAC
Rated fault current300mA
Short-time delayed trippingNo
Rated voltage400V
With interlocking deviceYes
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-25 - 60°C
Additional equipment possibleNo
Connectable conductor cross section multi-wired0.75 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

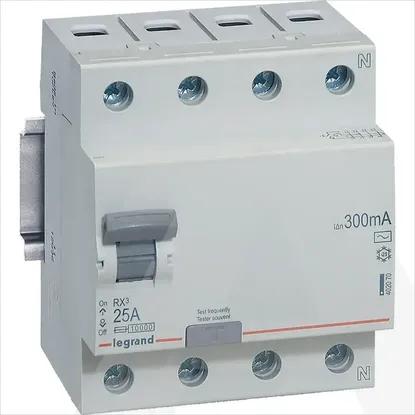

402070 | RX3 FID 25A 4P AC 300MA 4M
