Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Selective protectionNo
Leakage current typeAC
Rated insulation voltage Ui500V
Mounting methodDIN rail
Rated voltage400V
Rated fault current300mA
Number of poles4
Built-in depth44mm
Rated current63A
Short-circuit breaking capacity (Icw)10kA
With interlocking deviceYes
Degree of protection (IP)IP20
Pollution degree2
Connectable conductor cross section solid-core0.75 - 50mm²
Short-time delayed trippingNo
Surge current capacity0.25kA
Ambient temperature during operating-25 - 60°C
Width in number of modular spacings4
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleNo
Connectable conductor cross section multi-wired0.75 - 35mm²
Frequency50 Hz
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

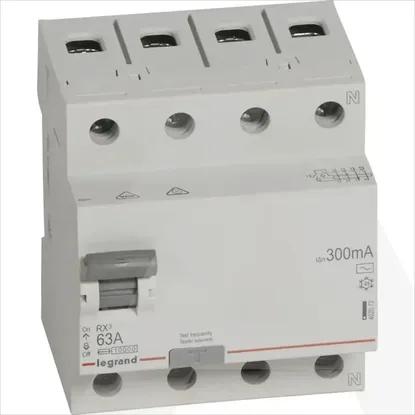

402072 | RX3 FID 63A 4P AC 300MA 4M
